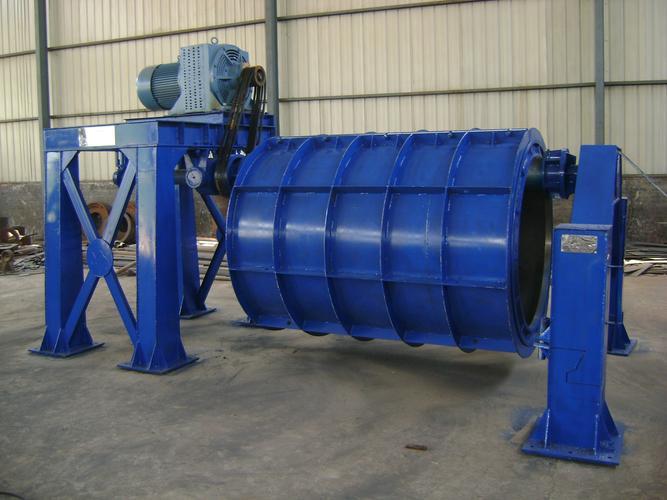

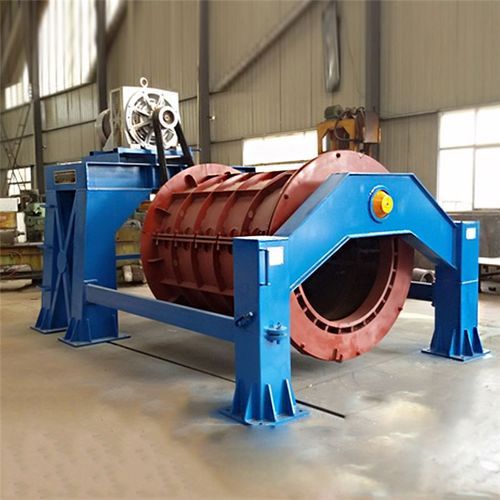

Suspension Roller Concrete Pipe Making Machine

Introdction of Suspension Roller Concrete Pipe Making Machine

Suspension roller concrete pipe machine can produce pipe diameter from 300mm to 2000mm , length from 1m to 4m , with different pipe joint shape ; the concrete pipe machine is low invested and high efficency , it is steady and with small production space.
  • Suspension roller concrete  pipe making machine
  • Suspension roller concrete  pipe making machine
  • Suspension roller concrete  pipe making machine
  • Suspension roller concrete  pipe making machine
  • Suspension Roller Concrete Pipe Making Machine

Desciption

Features of Suspension Roller Concrete  Pipe Making Machine

Suspension roller concrete  pipe making machine adopts dry hard concrete, the pipe wall is dense, and the pipe body can withstand high load strength; the pipe feeding time is short, the forming time is short, and the production efficiency is high; the waste of concrete in the pipe making process is small, There is no discharge of waste cement slurry, so there is no environment; the intensity of high-frequency noise generated during the production process is low; the pipe making operation technology is difficult, and poor control may easily lead to poor impermeability, rough pipe body, and excessive pipe wall Quality problems such as thickness and pipe wall collapse.

Technical Parameters

Model

Length (mm)

Shaft Dia (mm)

Motor Power (KW)

Dimension(mm)

300-600

1000

120

7.5

2500*1500*1300

2000

120

15

3500*1500*1300

3000

120

22

4500*1500*1300

800-1200

2000

180

45

4500*2200*1800

2500

240

45

5000*2200*1800

3000

240

55

5500*2200*1800

4000

300

75

6500*2200*1800

800-1500

2000

350

75

4500*2500*1800

2500

350

75

5000*2500*2080

1200-2000

2000

500

90

5000*2800*2080
