Concrete Spun Pole Making Machine

Introdction of Concrete Centrifugal Pole Making Machine

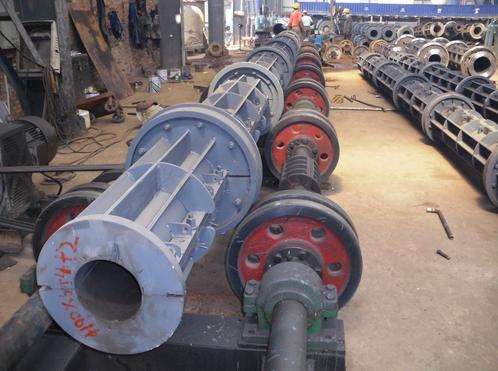

Centrifugal spinning machine is designed and manufactured for centrifugal reinforced concrete pipe in single  mould spinning  for largre diameter pipe and multiple mould spinning for small and medium size mould spinning .The machine is totally custom-made, and specification is available based on endusers' application.
  • PHC Concrete Centrifugal Pole Making Machine
  • PHC Concrete Centrifugal Pole Making Machine
  • PHC Concrete Centrifugal Pole Making Machine
  • PHC Concrete Centrifugal Pole Making Machine
  • PHC Concrete Centrifugal Pole Making Machine
  • PHC Concrete Centrifugal Pole Making Machine
  • PHC Concrete Centrifugal Pole Making Machine
Desciption
Technical Parameters

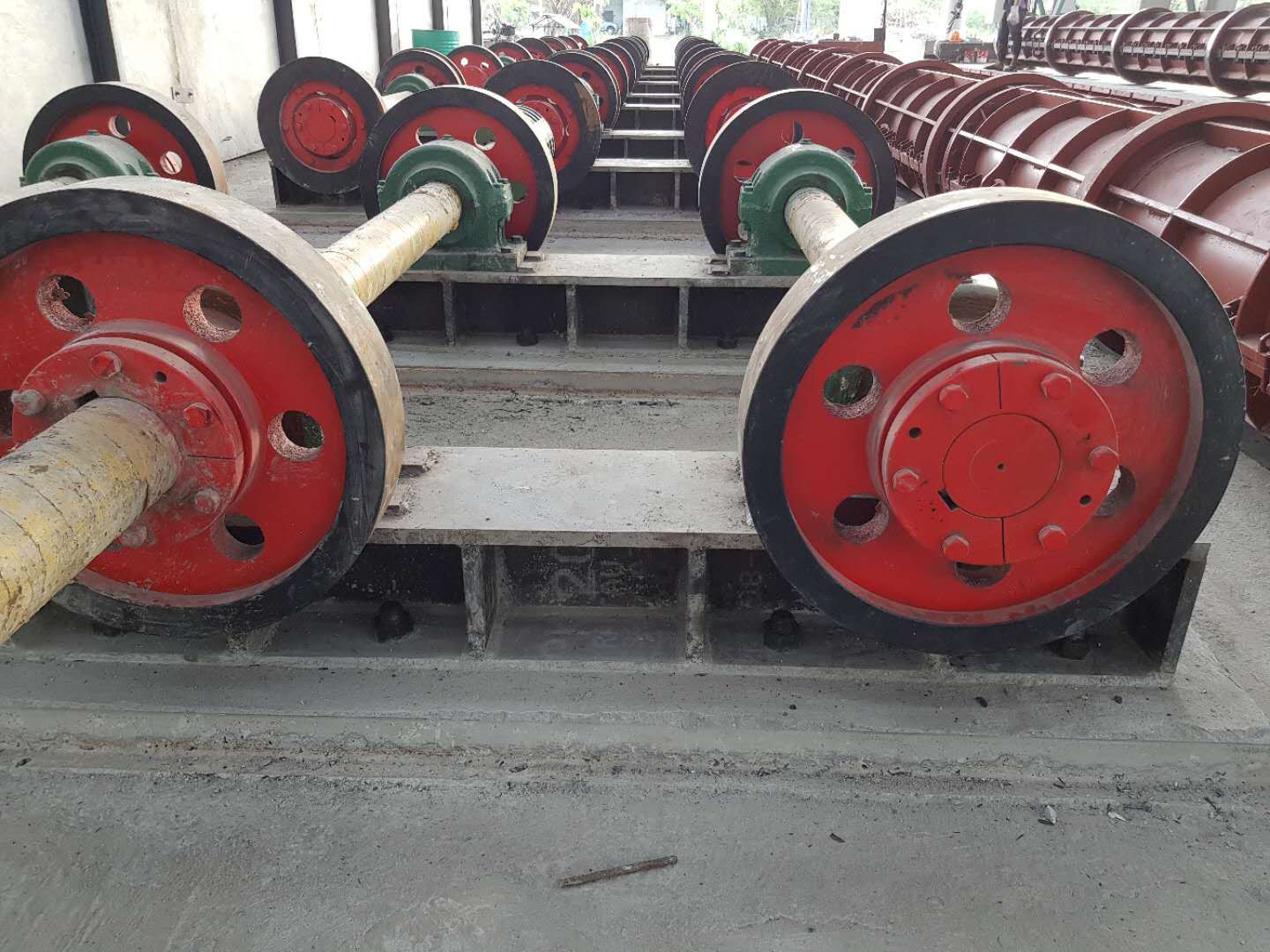

 The distance between two wheel  2000mm
The distance between central of wheel  950mm-1200mm
Diameter of wheel 600mm
Diameter of axle 110mm-125mm

Automatic controller for centrifugal concrete pile machine



Technical Characteristics:

1.Unique"slot" design, change the screw limit between the bearing support and base plate with card solt and bolt limit. Both up and down sides of the spinning machine panel, undersurface and two sides of bearing support go through fine machining.

2.Connection shaft is whole shaft, to avoid stress concentration brought by shaft diameter changes, resulting in the phenmenon of "shaft-broken".

3.The limit side of the support wheel is removable. It is convenient for users to replace.

4.Frequency-conversion cabinet of spinning machine records process parameter of each pipe and output reports,provides the office computer data communication interface.
