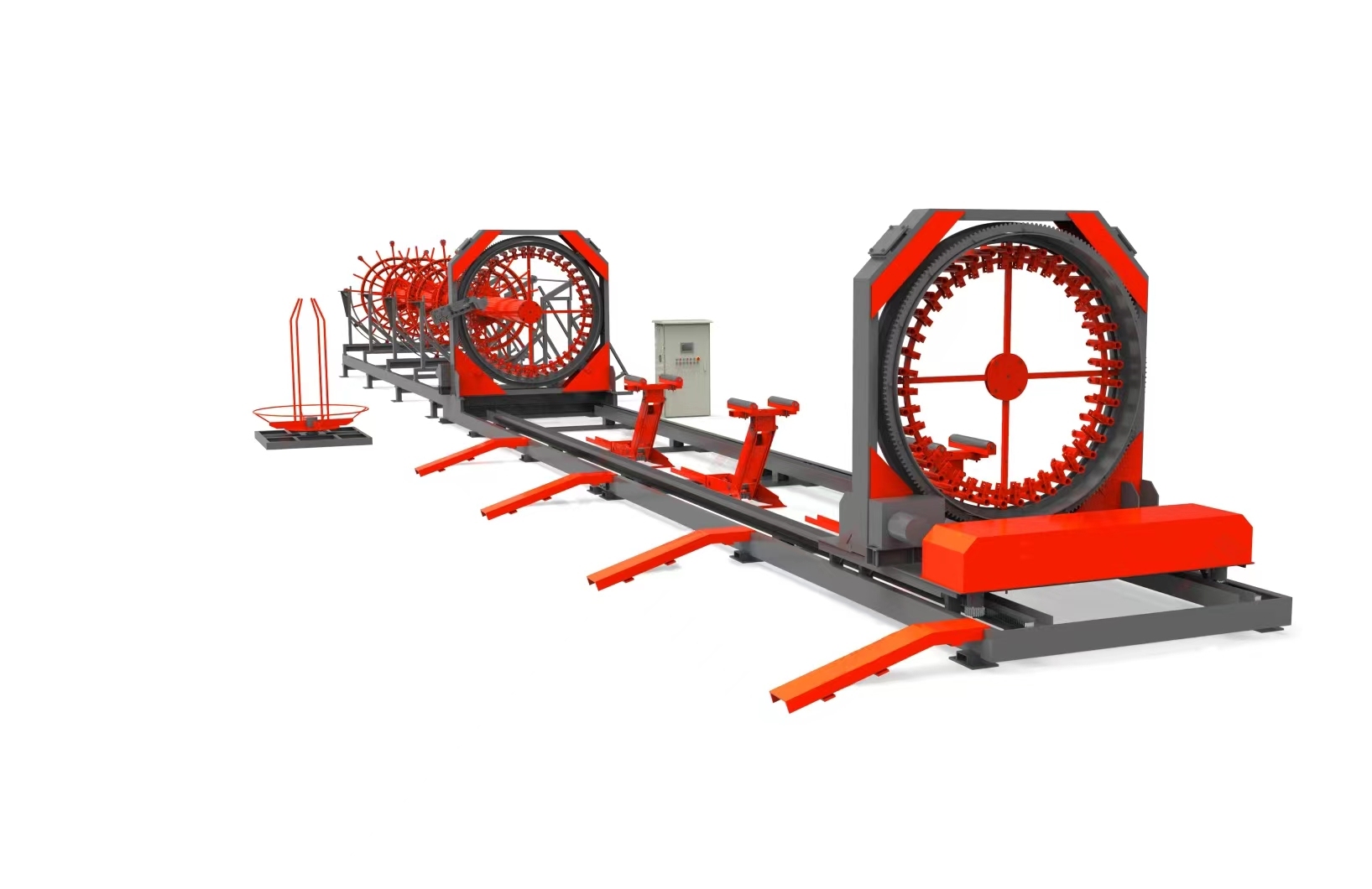

Pile Cage Welding Machine

Introduction of Pile Cage Welding Machine

Reinforcement cage is used more and more in the construction projects, the traditional manual made steel cage is a waste of time and labor, low efficiency, there is an urgent need for automatic or semi-automatic reinforcement cage equipment. It can be widely used in steel processing plants as well as pile construction and construction units. Our Pile steel cage molding machine is high accuracy designed and manufactured. It's used for drilling pile reinforcement cage processing, cage diameter range 400-2500 mm.

Desciption

Features of Pile Cage Welding Machine

Wire Cage Welding Machine has advanced technology is introduced from Europe, lots of parts have patent for invention, the high efficiency also high endurance and humane designs are safe and reliable;
Wire Cage Welding Machine is made of high precision of PLC control, LCD display is easy for operating, have mighty graphics library, it is able to communicate with management software;
Electric-Resistance-Welded in use, energy conservation and consumption reduction;
Rebar cages welding machine: cage diameter 400-2500mm, maximum welding efficiency is 70 points/min;
Dostar Wire Cage Welding Machine has been sold nearly 300 sets around the world.

Technical Parameters

Pile Cage Welder Specification
MODLE		DSD-1250	DSD-1500	DSD-2000	DSD-2500
Cage Size(mm)		400~1250	500~1500	600~2000	800~2500
Cage Length(m)		12~27
Cage Weight (KGS)		3000	4500	6000	8000
Spiral Diameter(mm)		Ф5～Ф16
Spiral Distance(mm)		50~500
Main Rebar(mm)		Ф12～Ф50
Air Pressure		10Mpa
Power (KW)		13	15	23	27
Dimension	L(m)	27~57
	W(m)	5	5.5	8	8.5
	H(m)	2.2	2.5	3.3	3.5
Above are our standard machines, we accept special specifications for OEM service.
