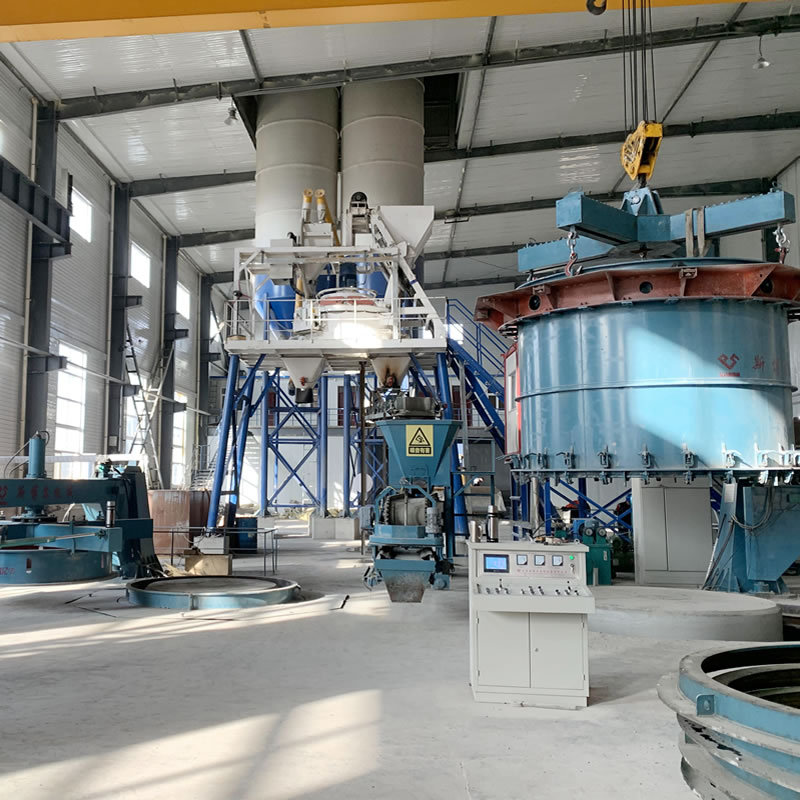

The Advantages of High-frequency Vibration Pipe Making Machine:
The high-frequency vibration pipe making machine independently developed by our company increases the frequency of the vibrator from the original 4000rpm to 5000-6000rpm.
1. High-frequency vibration has the characteristics of large excitation force, high frequency, and small amplitude. It has better performance than traditional core mold vibration equipment.
2. The component products produced by the strong exciting force have no pores, high density, high strength, and high efficiency.
3. The daily output is 1.5-2 times that of traditional core mold vibration equipment. Greatly improve production efficiency and reduce production costs for customers
Technical Characteristics:
1. The bearings used in the inner mold vibrator and the main bearing housing are all German-origin Schaeffler (FAG) bearings with import declaration documents. The maximum speed of the vibrator is 6000rpm, the maximum excitation force is 398Kn, and the excitation force is adjustable in five levels, respectively 398kN, 364kN, 280kN, 180kN, 132kN.
2. The main frame vibrator, damping cross, and main frame produced by our company are fixed installation at one time, that is, when the internal mold needs to be replaced, the vibrator and the main frame do not need to be disassembled again, only the expansion on the vibrator is required. When the tightening device is loosened, the inner mold can be removed for replacement. This not only saves the time for mold change, but also avoids oil leakage caused by frequent disassembly of the oil pipe on the vibrator.

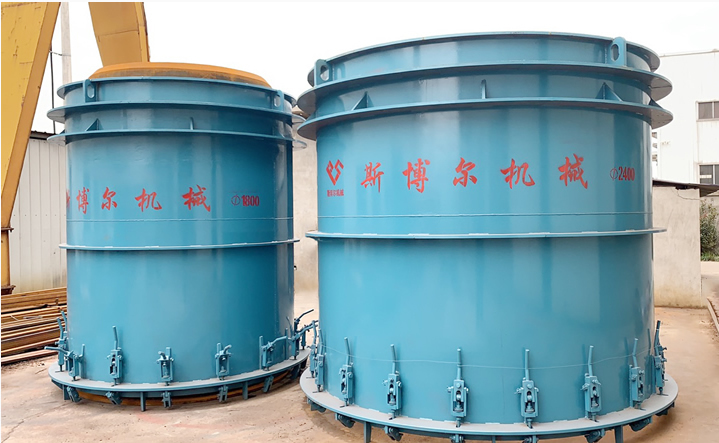

3. The steel plate used in the mold is made of Q345 high-strength steel plate, which is light in weight and high in strength.
4. The bottom mold and the socket mold are cast steel parts (material is ZG270-500) and have undergone aging treatment, with high strength and small stress and deformation, which effectively guarantees the precise size of the cement nozzle.
Technical Parameters
Model |
XM800-2400 |
XM1350-3000 |
XM1350-3600 |
Pipe Dia.(mm) |
Φ800-Φ2400 |
Φ1350-Φ3000 |
Φ1350-3600 |
Pipe Length(m) |
2m/2.5m |
2m/2.5m |
2m/2.5m |
Pipe Type |
steel-collar socket /rebated socket/spigot-socket |
steel-collar socket /rebated socket/spigot-socket |
steel-collar socket /rebated socket/spigot-socket |
Above are the standard productions. For customized size, please contact us. |
